Icom IC-F6330D UHF Digital Transceiver

Description

IC-F5330D / IC-F6330D

VHF and UHF Digital Transceivers

IC-F5330D – VHF/IDAS Digital

IC-F6330D – UHF/IDAS Digital

25 Watt, UHF Mobile Transceiver (Digital) 400-520MHz with Controller Mic

• Flexible Installation Using an Ethernet Cable Between the Main Unit and Commandmic™
• Loud and Intelligible Audio Even in Noisy Environment
• Input /Output Interface for External Devices with Optional D-SUB Accessory Cable
• Dual Mode Operation – IDAS™ Digital Mode and Analogue FM Mode
• 400 – 520 MHz Wide Frequency Coverage (IC-F6330D UHF version)
• 136–174 MHz (IC-F5330D VHF version)
• 128 Channels / 8 Zones

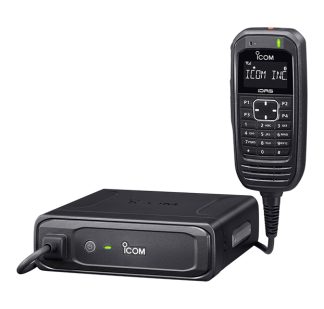

• Two-piece configuration – Commandmic™ + black box main unit
• Commandmic™ is powered from the main unit through an Ethernet cable* * Extendable up to 100m, 328 ft. (Cat 5e LAN cable user supplied).
• High contrast, wide viewing angle, black background display on the Commandmic™
• 1700 mW (typical) audio output from the Commandmic™
• MIL-STD-810 G shock, vibration, temperature and more
• IPX4 water splash resistance for the Commandmic™
• DTMF autodial memories capability

Operating Mode

• NXDN™ conventional
• NXDN™ Type-D single-site trunking
• NXDN™ simulcast
• NXDN™ multi-site conventional over IP network
• Analogue mode

Digital Functions (Voice and Data)

• PTT ID and ANI
• Over-the-Air Alias (OAA) displays the caller’s name without programming
• Individual, Group and All call
• Late entry for Group call
• Status call and Polling call
• Short data messages
• Call alert
• Radio check (RX only)

Analogue Functions

• CTCSS and DTCS tone
• 2-Tone and 5-Tone
• MDC functions; PTT ID, Emergency (TX/RX), Radio check (RX), Stun (RX), Revive (RX)
• BIIS PTT ID transmission

Security and Safety

• Digital voice scrambler
• Emergency call and Lone worker
• Remote monitor (RX)
• Radio Kill, Stun and Revive (RX)

Scan Functions

• Priority scan monitors one or two priority channels while scanning non-priority channels
• Voting scan automatically selects the optimal repeater site

Hardware Features

• Set an IP address for main unit and Commandmic™
• GPS receiver connection with optional ACC cable
• Optional D-SUB connector, OPC-2078/OPC-1939, for external PTT, channel, horn, ignition switch, and dimmer control, according to programming*
• * No digital modulation “IN” w

Flexible Installation with a PoE Switch and IP Network

• Using a PoE (Power over Ethernet) switch (as the power supply to the microphone) and an IP network, you can easily install the IC-F5330D series into a building*. In this installation scenario, you don’t have to worry about the distance between the main unit and the Commandmic™. Also, as the main (RF) unit can be installed close to the antenna, cable loss is kept to a minimum.
• * In-building usage is not available in some countries.
