Description

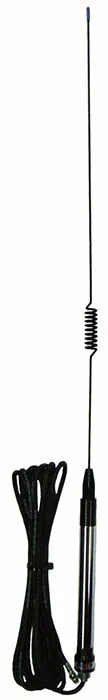

Ground independent UHF elevated feed antenna, 470-490 MHz, 50W, UHF male PL259, 4.5m cable, 6.2 dBi – 800mm
PRODUCT CODE: GID-M480
The GID-M480 ground independent elevated feed UHF antenna offers moderate gain in a lightweight design. These antennas are an excellent choice for vehicle or fixed position mounting in positions where weight bearing is minimal. The recommended mounting of a GID-M480 is into any appropriate bracket with a minimum 10mm hole.
SPECIFICATIONS
FREQUENCY
470-490 MHz – UHF, including UHF CB Radio 477 MHz
BANDWIDTH
Full frequency range stated – 20 MHz
GAIN
6.2 dBi – suits mild hilly or flat terrain
TUNING
Factory at 1.5:1 VSWR
IMPEDANCE
50 Ohms
H PLANE BEAMWIDTH
360° omnidirectional ± 0.5 dBd
MAXIMUM POWER
50 Watts
POLARISATION
Vertical
CONSTRUCTION
Black powdercoated phased coil stainless steel whip, blue identification cap, delrin and chrome elevated feed mount base, 4.5m external RG58 cable and UHF male connector
CONNECTOR
FME female fitted to cable, FME male to UHF male PL259 adaptor supplied
DIMENSIONS
Height: 800mm, Mount hole requirement: 10mm
WEIGHT – KG
0.59
