ZCG Scalar 12dBi 477MHz UHF Base Station Antenna

Description

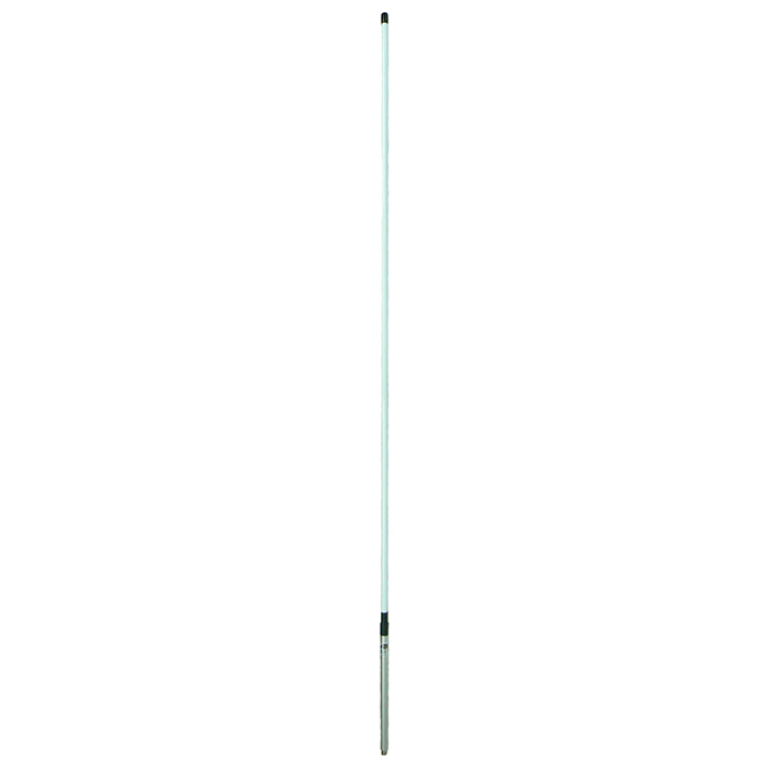

ZCG Scalar ZN2-77-09 UHF CB Radio Base Station Antenna



Key Features



• All white fiberglass construction
• Broadcast grade
• Stainless steel mount tube
• Australian made.



Usage



• The ZN2-77-09 omnidirectional collinear is perfect for use as a UHF CB radio base station antenna
• Constructed with precision 1/2 wave transposed elements to achieve its high 12 dBi gain, and is mounted on a marine grade aluminum mounting tube
• Standing 3.3 metres tall and factory tuned for 477 MHz, the ZN2-77-06 can be mounted to a mast, building or other structure
• An N-Female connector rated for up to 100 watts input power is located at the base of the mount tube
• All components used are of the highest quality to ensure long term survival in the harshest weather conditions and environments
• These antennas will deliver reliable performance for many years.
• Please Note all items over 3m require manual freight calculation



Specifications / Frequency



Network Compatibility Yes/No

Gain

UHF CB (477MHz)

12dBi



Electrical Specifications



• Frequency Range: 477MHz (Citizen Band UHF)
• Input Impedance: 50Ω
• VSWR: <1.5:1
• Polarisation: Vertical
• Radiation: Omnidirectional
• Maximum Power: 100Watts



Mechanical/Environmental Specifications



• Construction: White fibreglass radome, marine grade aluminium mount tube
• Cable: none supplied
• Connector: N Female
• Temperature: -40°C +70°C
• Weight: 1.75kg
• Height: 3.3m
• Mounting: 2 stainless parallel clamps (not supplied)



Special Delivery Information: This product is over 3300mm long and can only be delivered by a courier (not Australia Post) so we cannot accept a PO Box

Please provide an address where someone will be present to sign for the package.
