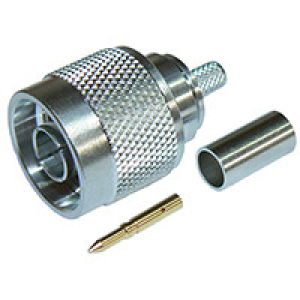

ZCG N-type connector, (RG58) – crimp

Description

LOW P.I.M. N-TYPE MALE CRIMP CONNECTOR PLUG FOR RG58 – TRI-METAL PLATEThe 7933-2 is a N-type male crimp pin and sleeve, low passive intermodulation (PIM) plug connector for RG58 low loss, solid conductor, foam PE dielectric coaxial cable and RG58A/U stranded core, solid PE dielectric coaxial cable. Alternatively the pin can be soldered onto centre conductor if required.SPECIFICATIONSFREQUENCYDC to maximum 11 GHzIMPEDANCE50 Ohms – nominalMAXIMUM POWER500 Watts maximum, 1kW – peakPOLARISATIONStraight – crimp-styleCONSTRUCTIONTri-metal plated body and crimp sleeve, gold plated centre pin and PTFE insulatorCONNECTORN-type male / N-maleWEIGHT – KG0.028
