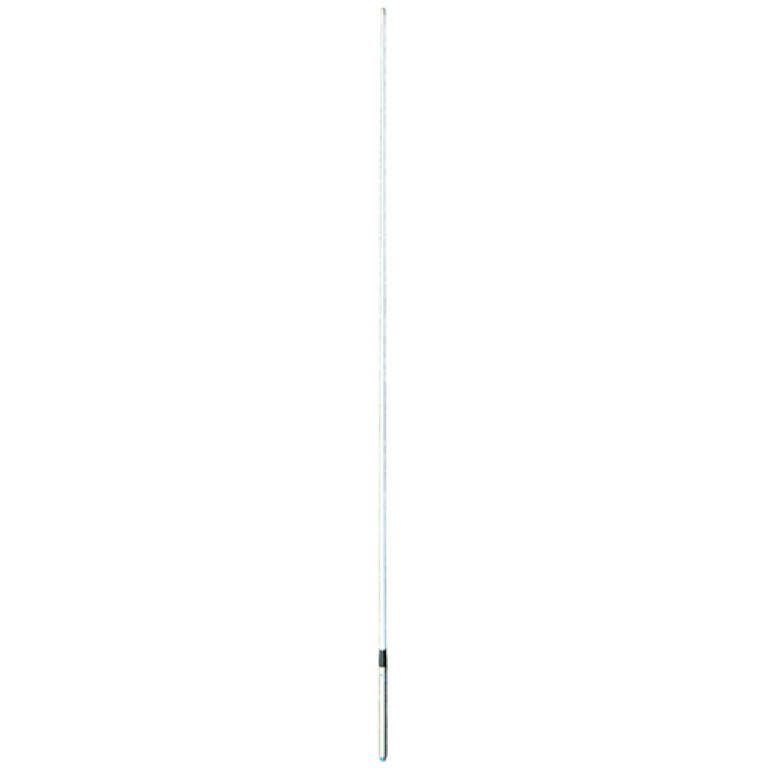

ZCG Scalar 6dBi 477MHz UHF Base Station Antenna - Image 1

ZCG Scalar 6dBi 477MHz UHF Base Station Antenna

ZCG Scalar 12dBi 477MHz UHF Base Station Antenna
0 out of 5
( There are no reviews yet. )

$249.70

SKU: ZN2-675-06 Category:
Compare

Description

ZCG Scalar ZN2-675-06 UHF CB Radio Base Station Antenna



Key Features



  • All white fiberglass construction
  • Stainless steel mount tube
  • Australian made.



Usage



  • The ZN2-675-06 omnidirectional collinear is perfect for use as a UHF CB radio base station antenna
  • Constructed with aluminum internals and a machined marine grade aluminum mounting tube, the antenna delivers high 6 dBi gain
  • This antenna is often used as a fixed base-station antenna on machinery, temporary work sites, mining accommodation, and more
  • Standing 1.85 metres tall and factory tuned for 477 MHz, the ZN2-675-06 can be mounted to a mast, building or other structure
  • A UHF Female (SO239) connector rated for up to 100 watts input power is located at the base of the mount tube
  • All components used are of the highest quality to ensure long term survival in the harshest weather conditions and environments
  • These antennas will deliver reliable performance for many years.



Specifications / Frequency



Network CompatibilityYes/No

Gain

UHF CB (477MHz)

6dBi



Electrical Specifications



  • Frequency Range: 477MHz (Citizen Band UHF)
  • Input Impedance: 50Ω
  • VSWR: <1.5:1
  • Polarisation: Vertical
  • Radiation: Omnidirectional
  • Maximum Power: 100Watts



Mechanical/Environmental Specifications



  • Construction: White fibreglass radome, marine grade aluminium mount tube
  • Cable: none supplied
  • Connector: UHF Female (SO239)
  • Temperature: -40°C +70°C
  • Weight: 1.75kg
  • Height: 1.85m
  • Mounting: 2 parallel clamps (not supplied)



Connection







UHF Female (SO239) Connector [pictured]



  • This antenna has an integrated UHF Female (SO239) connector at the base of the mounting tube. There is no cable supplied
  • Please contact us if you would like a shorter length of cable, or a different connector, and we will customise this antenna for you.









A heads up!



  • Special Delivery Information: This product is over 1100mm long and can only be delivered by a courier (not Australia Post), therefore we cannot accept a PO Box
  • Please provide an address where someone will be present to sign for the package.
