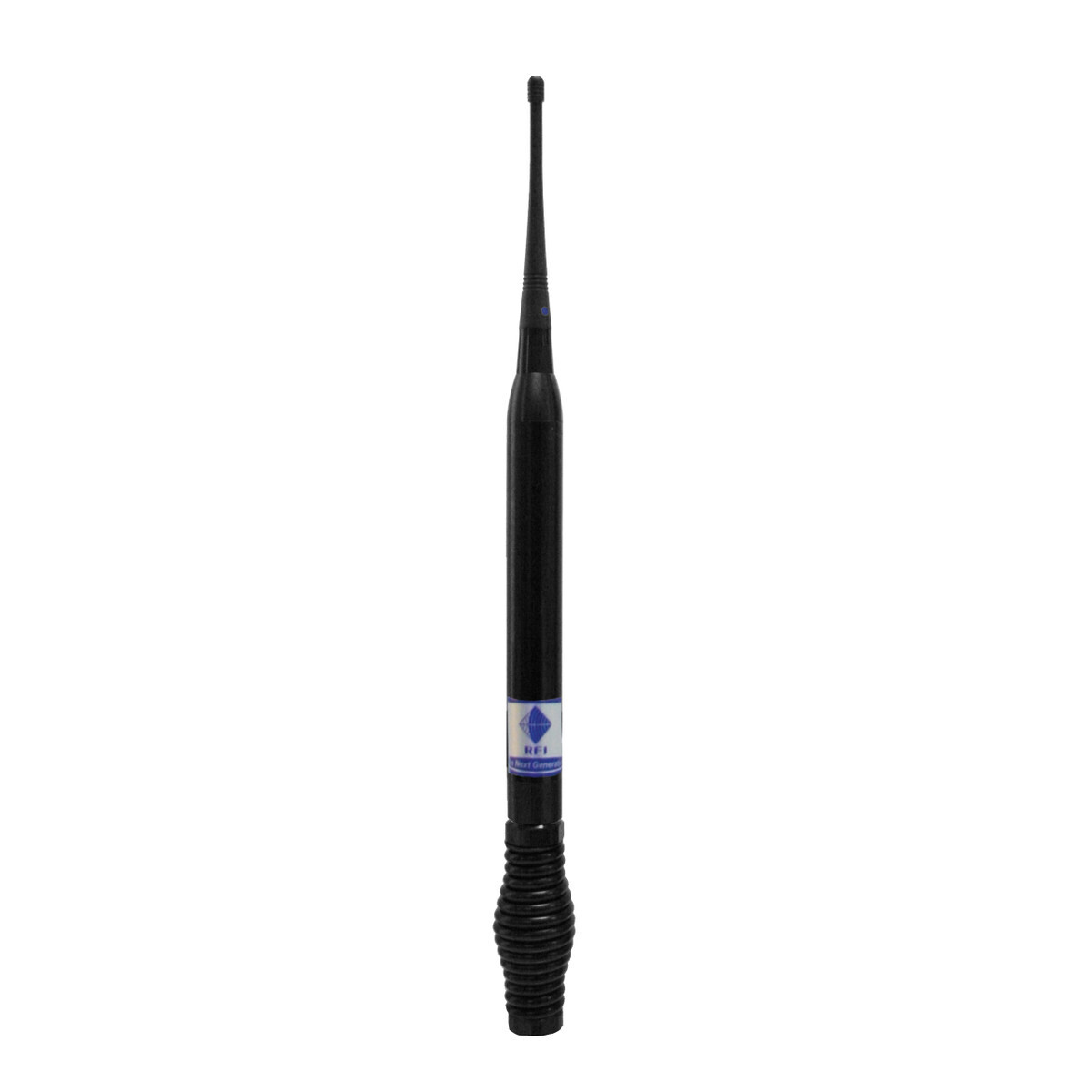

RFI UHF Elevated Feed Antenna (400-520 MHz)
Product Details
Brand: RFI
RFI UHF Unity Broadband E/Feed Antenna (400-520 MHz); Spring 5m cable No Connector - Black
Based on the industry leading CD90 series antennas. RFI has now released the CD990 elevated feed antennas. The CD990 uses a broadband feed choke providing excellent VSWR and performance over the full 400-520MHz spectrum without the need for tuning. Featuring a ground independent design, it is ideally suited for mounting on both conductive and nonconductive surfaces.
The CD990 is ideal for applications requiring broad bandwidth and high performance, common to many of today’s emergency service and government networks. CD991-67-73 Features: -Broadband - covers 400-520MHz without tuning -Versatile - ground plane independent design allowing alternative mounting locations -Durable - heavy duty stainless steel spring -Field Terminable – the antenna has been designed for easy re-installation and re-cabling by a suitably experienced installer -Available with or without stainless steel spring assembly
| Brand | RFI |
| Mounting | Threaded Stud |
| Length [mm] | 445 |
| Frequency MHz | 400-520 |
| Tuned Bandwidth | Full. No tuning required |
| VSWR | <1.5:1 |
| Nominal Gain [dBi] | 2 |
| Power [W] | 100 |
| Frequency Range [MHz] | 400 - 520 |
| Tuning | Supplied pre-tuned |
| Cable And Connector | 5m RG58 low loss cable / no connector |
| Whip Material | Moulded plastic |
| Packaging | Clear hanging bag |
| Finish | Black Chrome |
| Antenna Type | Omni |
| Antenna Application | Vehicle Antenna |
| Frequency Band | UHF 380-520 MHz |
| Antenna Configuration | SISO |
