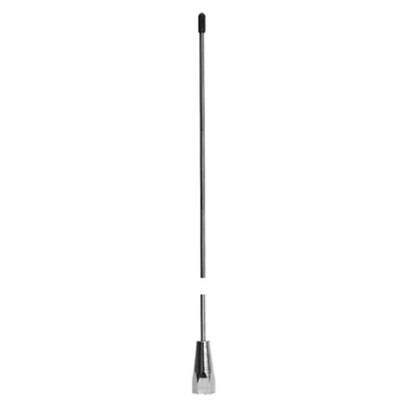

RFI VHF Unity Stainless Steel Whip (136-175MHz)
Product Details
Brand: RFI
In the 136-175 MHz band, ¼ wave roof mount antennas remain a popular choice. Mounted high on a vehicle they provide excellent omnidirectional performance, are easily tuned and are extremely affordable.
Features:
All of these antennas can be mounted to a standard 5/16 - 26 TPI base such as the MB9, MB10 or MB12. They can utilise the full line of accessories and fittings available for such applications.
• Parallel stainless steel whip
• Interference thread locking mechanism prevents loosening of whip due to vibration
| Brand | RFI |
| Frequency MHz | 136 - 175 |
| Tuned Bandwidth | 6% @ <1.5:1 VSWR (Typically at 150MHz) |
| VSWR | 6% @ <1.5:1 VSWR (Typically at 150MHz) |
| Nominal Gain [dBi] | Unity |
| Power [W] | 100 |
| Frequency Range [MHz] | 136 - 175 |
| Band | 136 - 175MHz |
| Tuning | Field tune to minimum VSWR |
| Cable And Connector | Not included, order separately |
| Whip Length mm | 633 |
| Whip Material | Parallel stainless steel with chrome plated ferrule |
| Antenna Type | Omni |
| Antenna Application | Vehicle Antenna |
| Frequency Band | UHF 380-520 MHz |
| Antenna Configuration | SISO |
